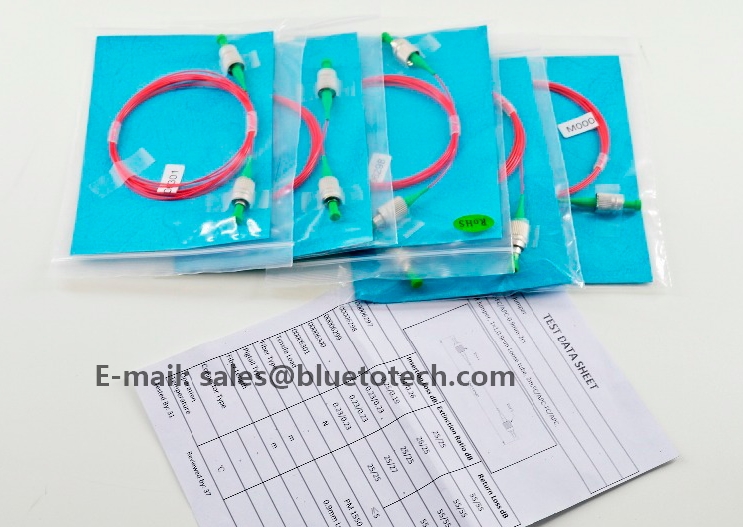

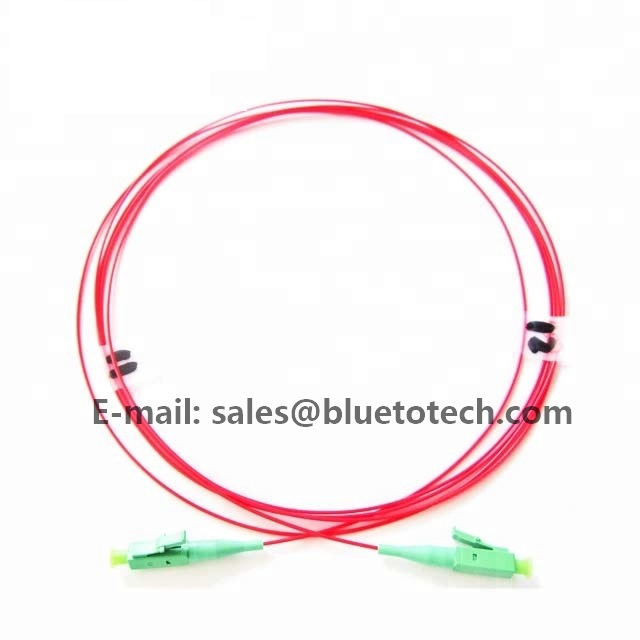

Polarization Maintaining Slow Axis LC Patch Cord PM Jumper / Panda Fiber 980 1060 1310 1550nm 10m,20m,30m

Product Numbers: 2019329155940

Product description: Polarization Maintaining slow axis LC Patch Cord,PM Jumper,Panda fiber 980,1060,1310,1550nm with LC connectors Polarization Maintaining (PM) Patch Cord 980,1060,1310,1550nm

INTRODUCTION

Polarization maintaining (PM) patch cord / jumper leads are built with polarization maintaining panda fiber and connectorise using FC/UPC, FC/APC, SC/UPC, SC/APC and LC connectors. FC connectors can be supplied with wide key (2.14mm, N type) or narrow key (2.02mm, R key) width. Patchcords can be supplied in 250um bare fiber, 900um buffered fiber or 3mm cable. PMP features low insertion loss, high extinction ratio and high return loss. The slow or fast axis can be aligned to the connector key.



Polarization Maintaining PM Patch Cord 980,1060,1310,1550 nm
Specifications
Parameters Values
Connector type FC/UPC, SC/UPC FC/APC, SC/APC
Wavelength 980 or 1064 or 1310 or 1550nm
Insertion loss <0.4dB
Optical return loss >50dB >60dB
Axis alignment slow axis of fibre aligned to connector key
Extinction ratio >23dB (R key), >20dB (N key)
Max. optical power 300mw
Connector key for FC type Narrow key (R key, 2.02mm) or wide key (N key, 2.10~2.14mm)
Fiber length tolerance +/-10cm
Fiber type PM panda fiber
Operation temperature -5 to +70°C
Storage temperature -40 to +85°C
Note: Specifications are subject to change without notice



Ordering Information
PMP-SS-V-X-Y-ZZ
SS: Wavelength 15 - 1550 nm, 13 - 1310 nm, 64 - 1064 nm, 98 - 980 nm, S - Specify
V: Key Width (For FC connector ) R - 2.02 mm (>23dB), N - 2.14 mm (>20dB)
X : Cable type B - 250um bare fiber, L - 0.9mm buffer, C - 3mm Cable
Y : Fiber length 0.5- 0.5m, 0.75 - 0.75 m, 1 - 1m, 5 - 5m, S - Specify
ZZ: Connector for end1 and end2 1 - FC/UPC, 2 - FC/APC, 0 - No connector, S - Specify
