2×32 Fiber Optic PLC Splitter 0.9mm LC APC connector with steel tube

Product Numbers: 202118153814

Product description: Fiber Optic PLC Splitter 2×32 0.9mm LC connector with steel tube

INTRODUCTION

Fiber Optic PLC Splitter 2×32 0.9mm LC/APC connector with steel tube

Features

Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength:From 1260nm to 1650nm
Wide Operating Temperature: From -40°C to 85°C
High Reliability and Stability


Applications

FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution


Specifications

Parameter
1*2
1*4
1*8
1*16
1*32
1*64
Operating Wavelength (nm)
1260-1650
Fiber Type
SMF-28e or Customer specificed
Insertion Loss (dB)(S/P Grade)
4.0/3.8
7.3/7.0
10.5/10.2
13.7/13.5
16.9/16.5
21.0/20.5
Loss Uniformity (dB)
0.4
0.6
0.8
1.2
1.5
2.5
Return Loss (dB) (S/P Grade)
50/55
Polarization Dependent Loss(dB)
0.2
0.2
0.3
0.3
0.3
0.4
Directivity (dB)
55
Wavelength Dependent Loss(dB)
0.3
0.3
0.3
0.5
0.5
0.5
Temperature Stability(-40~85 °C)(dB)
0.5
Operating Temperature (°C)
-45~85
Storage Temperature (°C)
-45~85
Module Dimension (mm) (L×W×H)
100*80*10
120*80*18
145*110*18

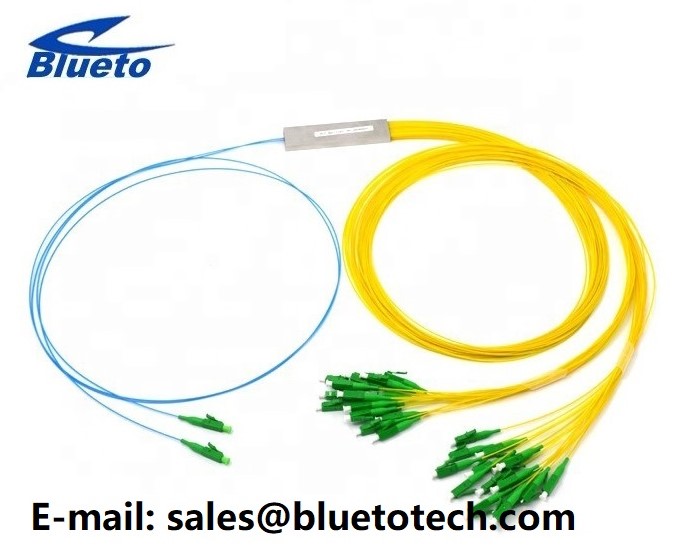

Image:
